Transit Engineering Services & Testing

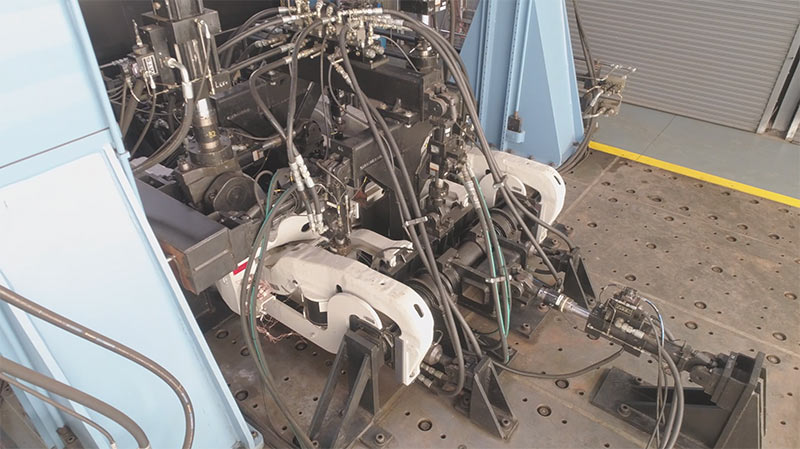

Amsted Rail is the only transit bogie manufacturer in America with both internal modeling and dynamic simulation expertise, along with in-house testing facilities to validate. Our transit division builds on Amsted Rail’s expertise in testing undercarriage and end-of-car components to meet customer specifications. Next generation machines allow us to push the envelope, subjecting complete transit bogie systems to the most rigorous testing.

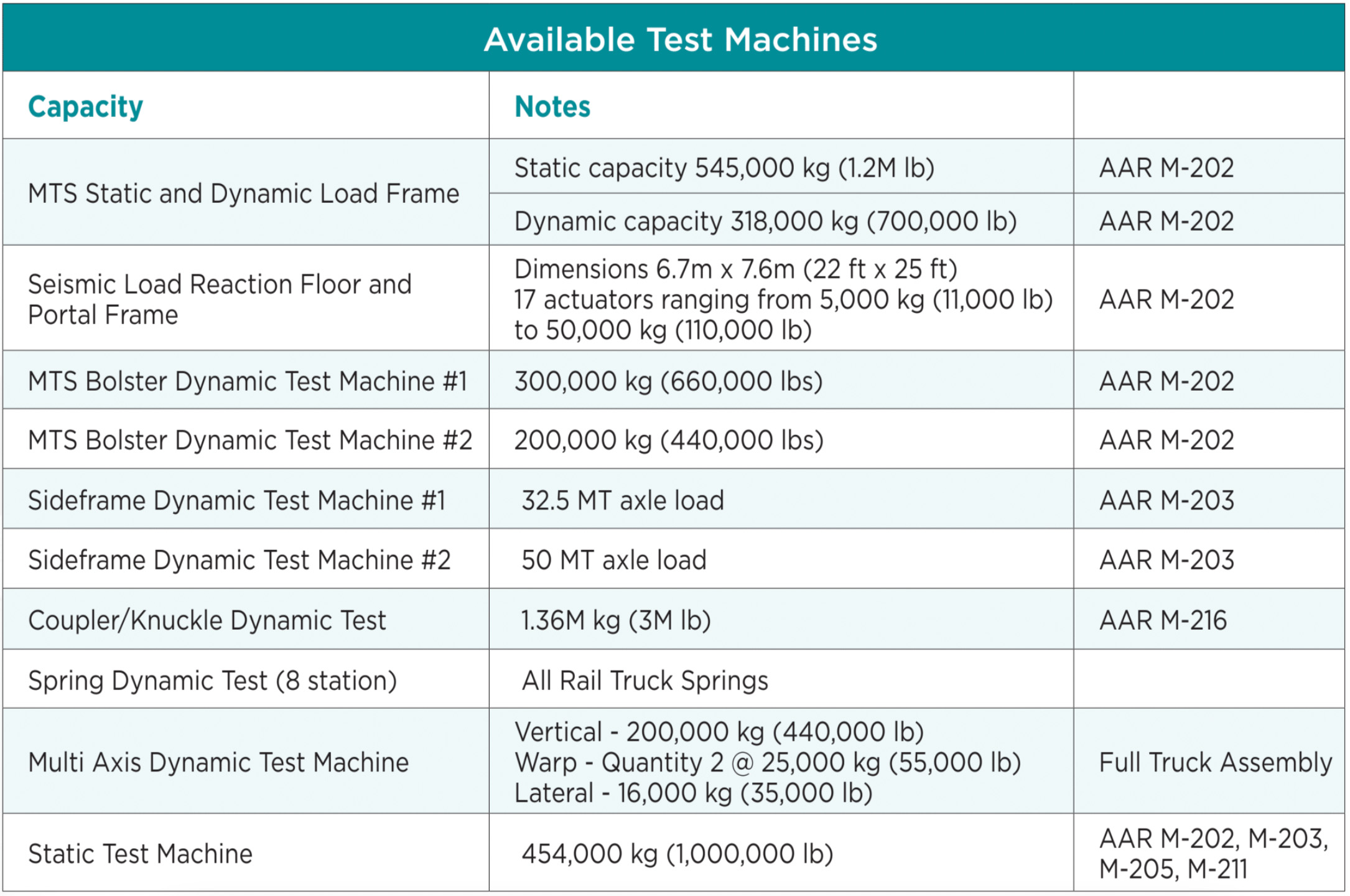

| Available Test Machine | ||
| Capacity | Notes | |
| MTS Static and Dynamic Load Frame | Static capacity 545,000 kg (1.2M lb) | AAR M-202 |
| MTS Static and Dynamic Load Frame | Dynamic capacity 318,000 kg (700,000 lb) | AAR M-202 |
| Seismic Load Reaction Floor and Portal | Dimensions 6.7m x 7.6m (22 ft x 24 ft)17 actuators ranging from 5,000 kg (11,000 lb) to 50,000 kg (110,000 lb) |
AAR M-202 |
| MTS Bolster Dynamic Test Machine #1 | 300,000 kg (660,000 lbs) | AAR M-202 |
| MTS Bolster Dynamic Test Machine #2 | 200,000 kg (440,000 lbs) | AAR M-202 |
| Sideframe Dynamic Test Machine #1 | 32.5 MT axle load | AAR M-203 |
| Sideframe Dynamic Test Machine #2 | 50 MT axle load | AAR M-203 |
| Coupler/Knuckle Dynamic Test | 1.36M kg (3M lb) | AAR M-216 |
| Spring Dynamic Test (8 station) | All Rail Truck Springs | |
| Multi Axis Dynaimc Test Machine | Vertical - 200,000 kg (440,000 lb) Warp - Quantity 2 @ 25,000 Lateral - 16,000 kg (35,000 lb) |
Full Truck Assembly |
| StaticTest Machine | 454,000 kg | AAR M-202, M-203, M-205, M-211 |
